VPN Gateway¶
VPN Gateway is a network service that provides a secure virtual private network (VPN).
The primary goal of the service is to provide users and developers with an easy and secure way to access their cloud account resources through a VPN.
When you create an account, a multifunctional Cloud Gateway
virtual machine is automatically created, which plays the role of a VPN server (or VPN gateway). To connect to the VPN service, the device must have a Wireguard client.
VPN Gateway functionality:
- creating VPN connections and adding VPN client devices;
Remote Gateway
allows you to combine account networks in different locations if the client uses the SCDC Platform in several regions;NAT Mapping
- IP address translation to solve subnet crossing problems.
VPN Gateways¶

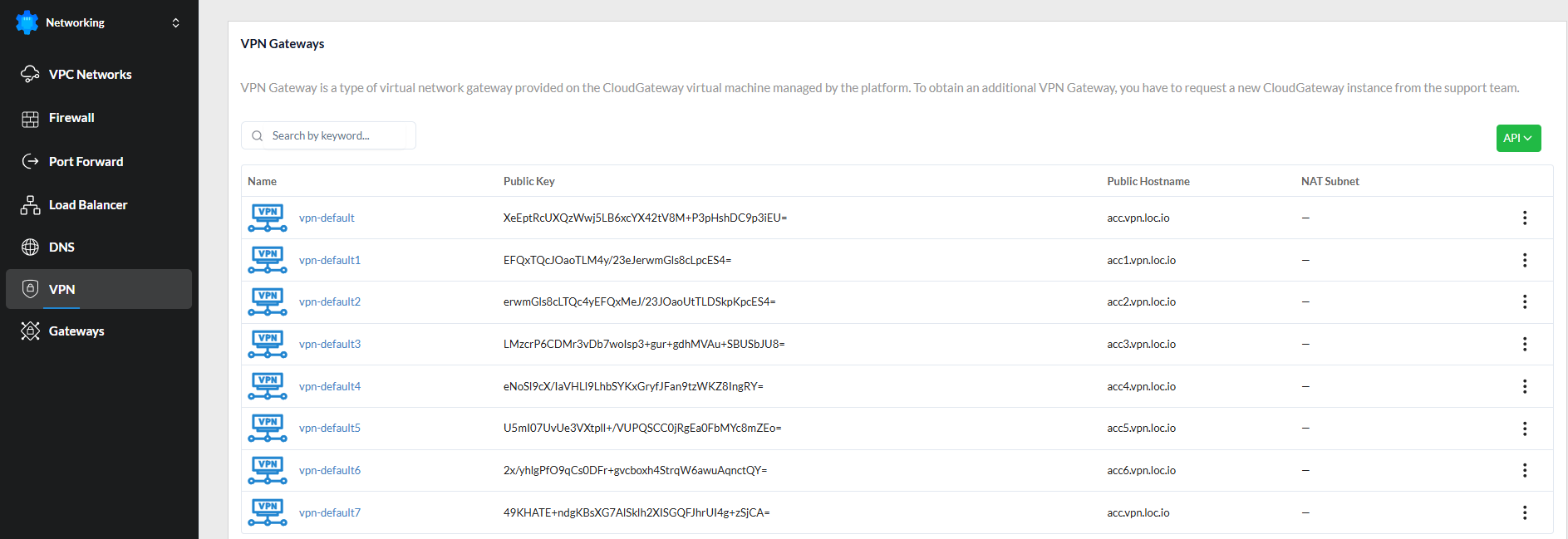

The VPN tab displays a list of VPN Gateways
.
A VPN Gateway is a type of virtual network gateway that is provided on top of a CloudGateway virtual machine that is managed by the platform.
The VPN Gateway has a public Wireguard key that is used for all connections. Each VPN Gateway has its own Public address, and by default, the first Gateway receives the Public Hostname - account_name.vpn.location_name.scdc.io
.
Here you can also set the NAT Subnet - this is an additional subnet that does not exist in the location and on user devices, for the IP-addresses of which its addresses are translated into the internal IP addresses of virtual machines.
This allows you to bypass the problem of crossing IP ranges on client devices and account networks.
Users can view the VPN Gateway Details
by opening it from the list.
VPN Details
specify:
Cloud Gateway Instance
- indicates the instance in which the Gateway is running;Public key
- public Wireguard key;Public Hostname
-account_name.vpn.location_name.scdc.io
;Internal address
- Cloud Gateway address in the internal infrastructure, needed to configure internal routes. (For example, if you need to send traffic to another location through Cloud Gateway, then you need to know the internal IP address of the Gateway);NAT Subnet
- an additional subnet whose IP addresses are translated into internal IP addresses of virtual machines. (optional)
Client Connections¶
The user can define one or more client connections (for example, for different user groups).
In the client connection, the user must specify the Device subnet
(and VPN Gateway IP
address within it) that will be used to allocate IP addresses to client devices. This subnet must not intersect with existing VPC networks and subnets on client devices.
Note
Also, in the VPC Networks application, in the Routing
tab, the user needs to add a new route (use Create
button) to the selected subnet through the internal address of the VPN Gateway (usually 198.18.0.2).
The Client Connections
tab displays:
Name of connection
- used to generate the name of the VPN and NIC network connections on the client device;Device subnet
- range of IP addresses from which IP addresses will be allocated to devices;Gateway IP
- Gateway IP address;Endpoint
- public Endpoint to which the connection is made.
Connection creating¶
Users can create a connection by clicking the corresponding button - Create Connection
.
To create a connection, you need to specify:
Name
of connection;Device subnet
- IP address of VPN Gateway on client connection subnet;
Importaint
The Device Subnet
must not overlap with other subnets within the same account that are defined in VPC Networks
.
Gateway IP
- Gateway IP address;Port
- UDP port on the public IP address;
Recommendation
We recommend using port 2200/udp
for the first connection, as it is pre-configured and intended for VPN connections. For subsequent connections within the account, please contact Support for port configuration assistance.
MTU
- maximum transmission unit, the recommended value - 1420.
Click Add
.

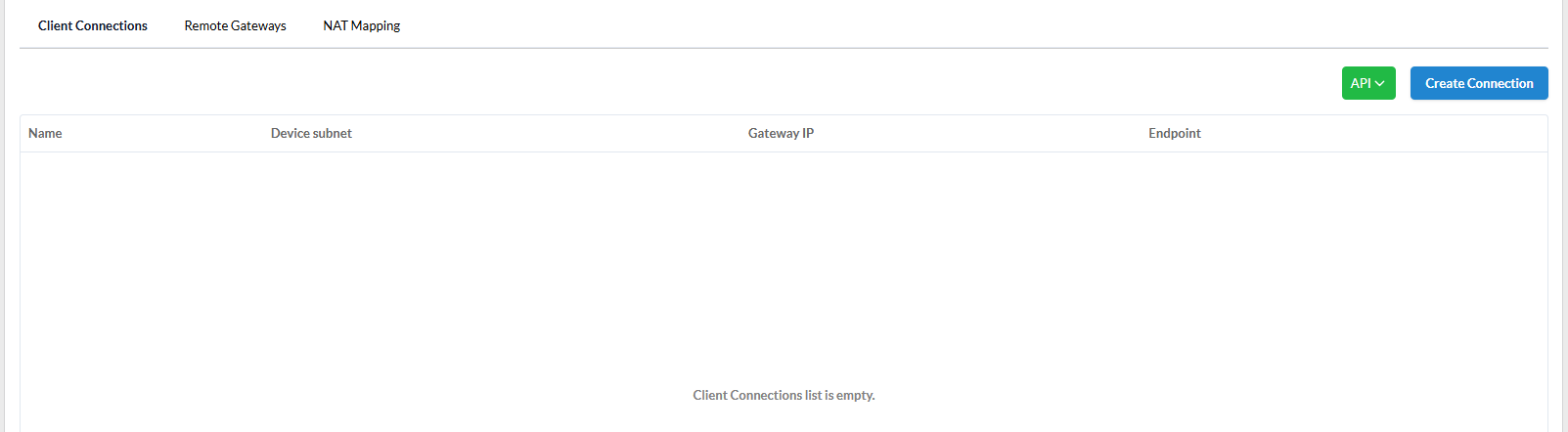

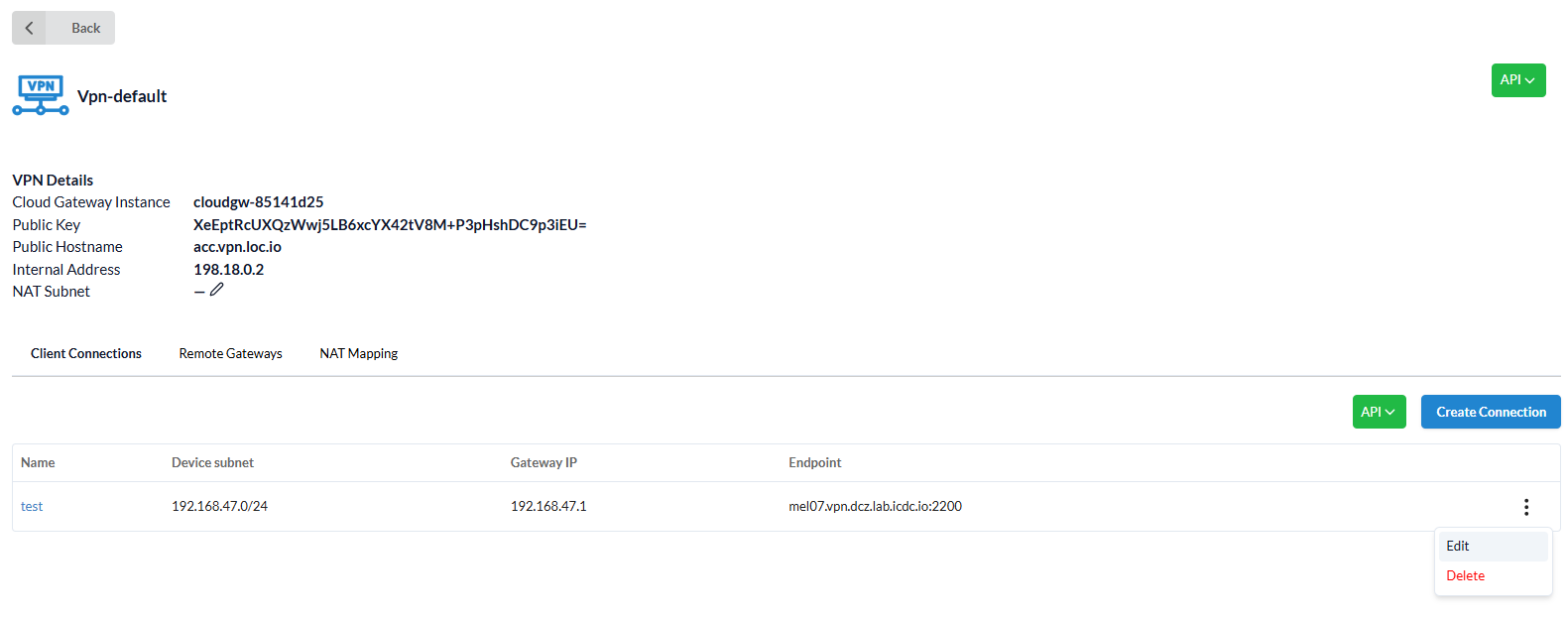

The created connection will be displayed in the Client Connections
tab, and it can be modified or deleted using the sidebar menu.
Note
If you need an additional connection within the same account - contact with Support service.
Device adding¶
Clicking on the name of a Client connection
takes the user to a Client Connection Details
page where they can add device(s) to the client connection by clicking on the Add Device
button.
To add a device, you need to specify:
Name
of device, e.g.John-laptop
,Maria-phone
;IP-address
of the device, which is generated based on the IP address of the subnet of the client connection;Public key
- public key that is generated on the device when creating a new connection in the Wireguard software;Route Subnets
(optional) - only used if the device is a remote location VPN gateway.
Here you specify the subnets that need to be routed from a remote location so that traffic from remote networks reaches the networks of the current account;Keep Alive
(optional) - time interval during which a packet is sent to maintain a connection to the device's UDP port.
The network firewall behind which the user device is located closes unused connections after a certain interval (usually 30 seconds). Therefore, the common value is 25 seconds.
Click Add
.
The added device will appear in the Device list
. The added device will appear in the device list, where the sidebar menu allows for modifying the configuration, updating the entered data, disabling, or deleting the device.
Remote Gateways¶

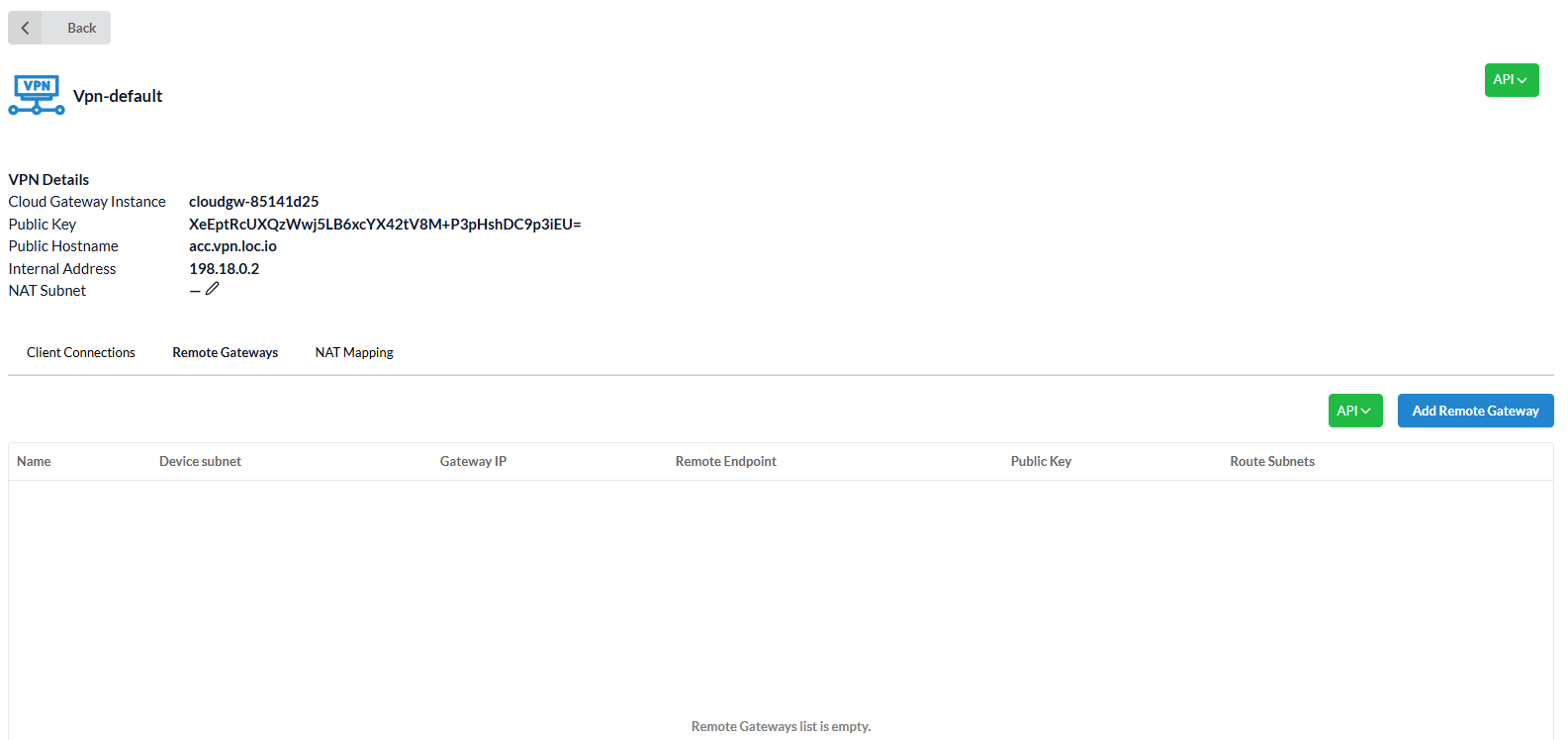

Information on remote gateway can be found in the Remote Gateways
tab:
Name
- name of the gateway;Device subnet
- range of IP addresses from which IP addresses will be allocated to devices;Gateway IP
- IP address of the gateway;Remote Endpoint
- public Endpoint to which the connection is made;Public Key
- Wireguard public key;Route Subnets
- subnets that need to be routed from a remote location so that traffic from remote networks reaches the current account.
Route Configuration¶
Adding a remote gateway allows to quickly integrate account networks located in different remote locations. It can also be used to connect the account's networks to a remote Wireguard VPN server, for example, installed in the customer's branch office.
To create network visibility in two different locations (for example, loc1
and loc2
), you need to configure static routing:
-
add routing in
loc1
location:- Go to VPC Networks page, select the
Routes
tab and configureRoute subnets
on subnets fromloc2
; - Go to the VPN page, select Gateway, and then select the
Remote Gateways
tab and configureRoute subnets
on subnets fromloc2
.
- Go to VPC Networks page, select the
-
add routing in
loc2
location:- Go to VPC Networks page, select the
Routes
tab and configureRoute subnets
on subnets fromloc1
; - Go to the VPN page, select Gateway, and then select the
Client Connections
tab in the requiredDevice
configureRoute subnets
on subnets fromloc1
.
- Go to VPC Networks page, select the
Remote Gateway adding¶
Users can add a remote gateway by clicking the corresponding button - Add Remote Gateway
.
To add a remote gateway, fill in the required fields and click Add
.
The created remote gateway will be displayed in the corresponding tab.
NAT Mapping¶
Network Address Translation (NAT) allows replacing IP addresses from a free IP range of a NAT subnet to the IP address of virtual machines located in non-routable cloud subnets of an account. This may be needed if the client device already has overlapping IP address ranges.
For each NAT mapping, DNS records of the following type are also automatically created:
<hostname>.<acc>.vpn.<loc>.scdc.io

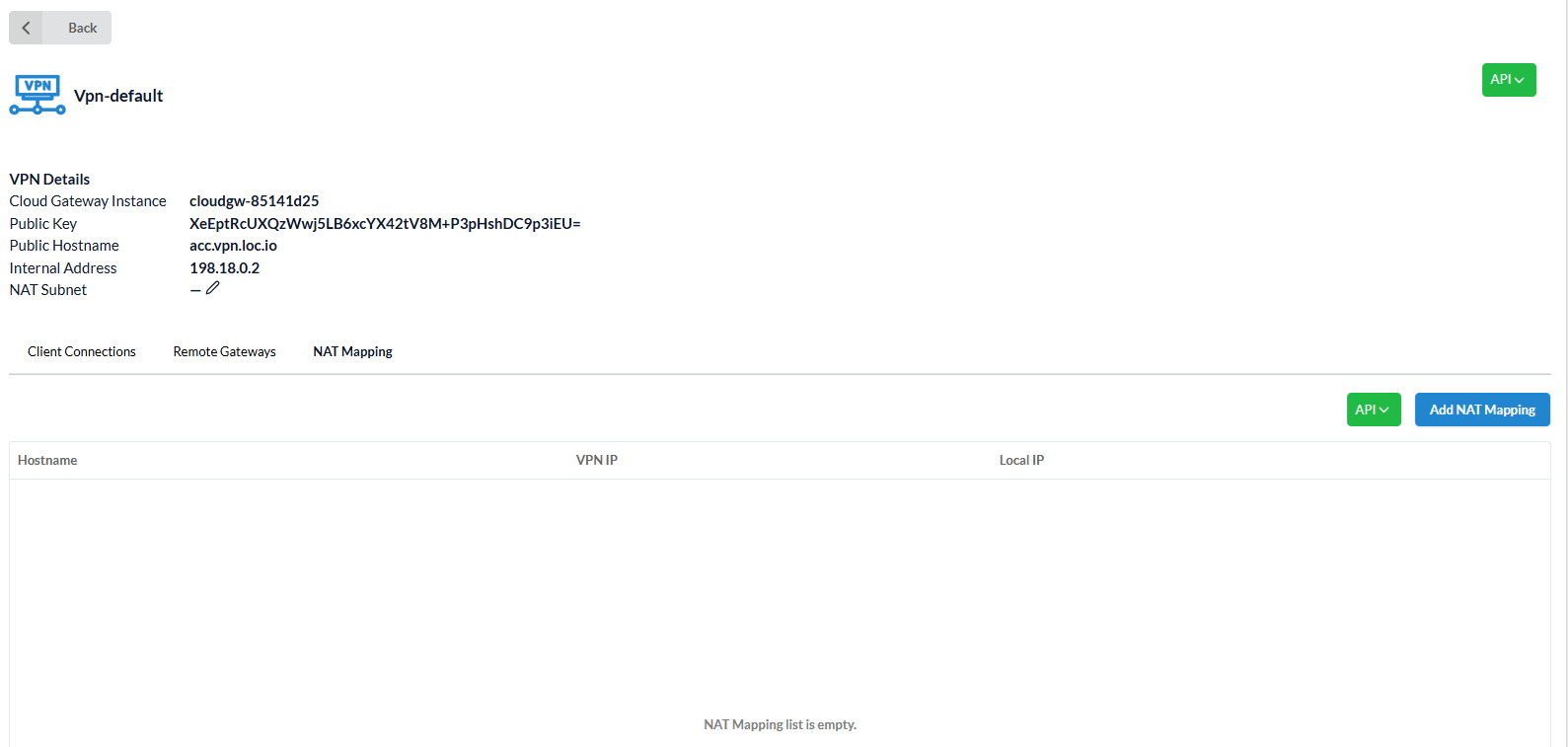

The NAT Mapping
tab displays a list of added NAT mappings.
Each mapping contains:
Hostname
- automatically highlighted -account_name.loc.scdc.io
;VPN IP
;Local IP
- any internal ip-address within the location.
User can add/edit NAT Subnet
using the edit button in VPN Details
.
To make changes, the user needs to enter new data and click the Save
or Cancel
button - in case of canceling the changes.

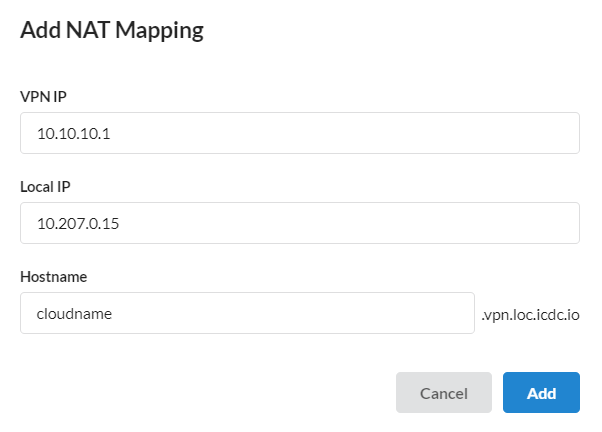

To add a NAT mapping, click on Add NAT Mapping
, enter the required information in the modal window, and click the Add
button.

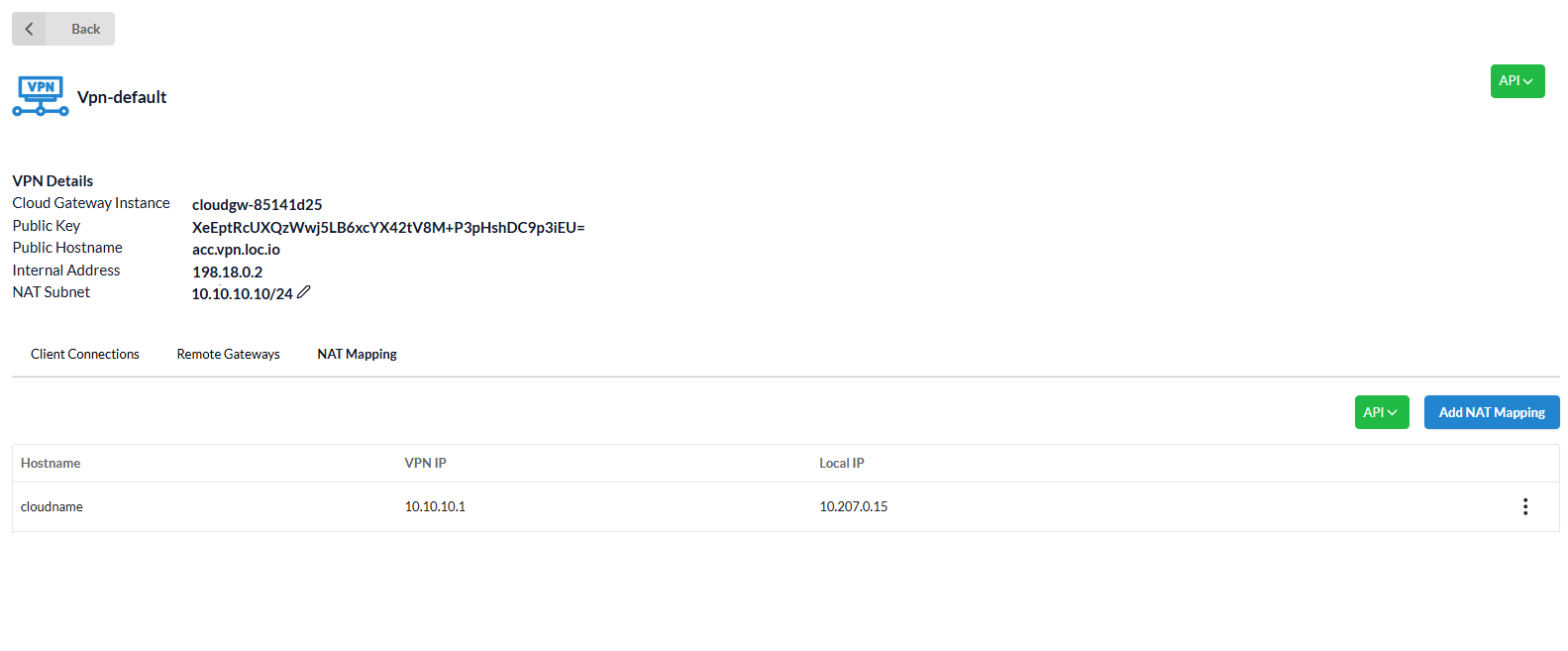

The added NAT will be displayed in the NAT Mapping
tab:
Roles and permissions¶
Action | Member | Admin | Billing | Operator | Owner |
---|---|---|---|---|---|
Create Connection | ✔ | ✔ | ✔ | ||
Edit Connection | ✔ | ✔ | ✔ | ||
Delete Connection | ✔ | ✔ | ✔ | ||
Add Device | ✔ | ✔ | ✔ | ✔ | |
Edit Device | ✔ only own | ✔ | ✔ | ✔ | |
Disable Device | ✔ only own | ✔ | ✔ | ✔ | |
Delete Device | ✔ only own | ✔ | ✔ | ✔ | |
Configs for Devices | ✔ only own | ✔ | ✔ | ✔ | |
Add Remote Gateway | ✔ | ✔ | ✔ | ||
Edit Remote Gateways | ✔ | ✔ | ✔ | ||
Delete Remote Gateways | ✔ | ✔ | ✔ | ||
Create NAT Mapping | ✔ | ✔ | ✔ | ||
Edit NAT Mapping | ✔ | ✔ | ✔ | ||
Delete NAT Mapping | ✔ | ✔ | ✔ |
